EXPERT-D3I Orthopedic Neurosurgery Medical Surgical Equipments Electro Hydraulic Operating Table

Model Number : Expert-D1

Name : Electro-hydraulic operating table

Length (MM) : 2100±50mm

Width(MM) : 500

Lumbar rise （MM） : 100

Application scenarios : Orthopedic Surgery \ Neurosurgery

Features : Adjustment

Design : Ergonomic design, comfortable

Contact Now

EXPERT-D3I Electro Hydraulic Operating Table

Introduction

The electro-hydraulic operating table is a medical device used for surgery. It combines electric and hydraulic systems for precise patient positioning and adjustment. The electro hydraulic table provides smooth and controlled motion, enabling the surgeon to achieve optimal patient positioning. It provides stability, flexibility, and enhances surgical accessibility, ensuring patient comfort and safety during procedures.

Features

Precise positioning and adjustments
Stability and durability
Smooth and controlled movements
Flexibility and versatility
Patient safety and comfort
Integration with imaging systems
Easy operation and control

Expert-D3I Description

Expert-D3I is an electro-hydraulic operating table with a new level of quality and function. It is more suitable for medical personnel to operate with dual controls and dual operations.Using hydraulic system control technology, the operation table has characteristics of stable operation, low failure rate and Long service life.

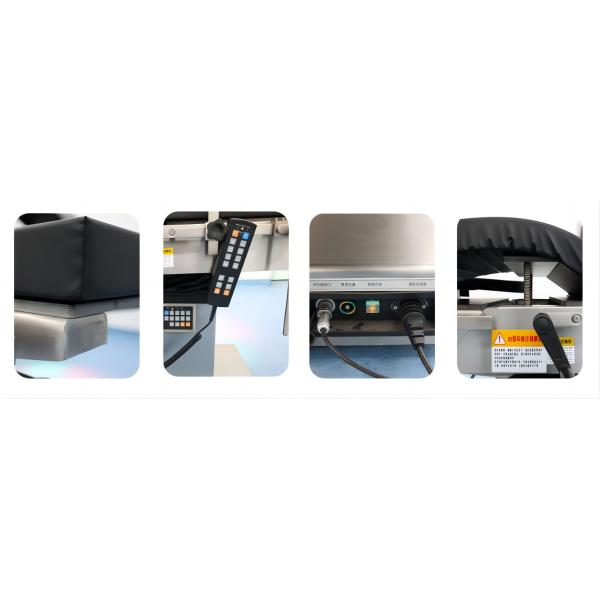

The Electro-hydraulic OT Tables can be controlled by the hand controller and the side control panel to to achieve adjustment of the lifting, translation, RE trendelenburg and trendelenburg, left and right tilting and back board.

Application

Orthopedic Surgery: Used for joint replacements, fracture repairs, spinal surgeries, and limb lengthening.
Neurosurgery: Essential for brain tumor removal, spinal cord surgeries, and intracranial procedures.
Cardiac Surgery: Crucial in coronary artery bypass grafting (CABG), valve repair/replacement, and congenital heart defect corrections.
Gynecological and Obstetric Surgery: Supports hysterectomy, ovarian cyst removal, laparoscopic surgeries, and cesarean sections.
Urological Surgery: Employed in kidney stone removal, prostate surgeries, bladder surgeries, and urinary tract reconstructions.
ENT Surgery: Used in tonsillectomy, adenoidectomy, septoplasty, and sinus surgeries for precise positioning.

D3I Parameter

MODEL	D3Ⅰ
Length (MM)	2100±50mm
Width(MM)	500
Max Height (MM)	1000±50
Min Height (MM)	700
Lateral tilt(° )	20
Trendelenburg (° )	20
Re-Trendelenburg (° )	30
Fold up the head board (°)	45
Fold down the head board(°)	90
Fold up the back board(°)	78
Fold down the back board (° )	20
Fold down the leg board (° )	90
Leg board abduction (° )	90
Lumbar rise (MM)	100
Table translation(MM)	300
